Overview

Airborne telemetry systems for monitoring, transmitting and displaying cloud seeding aircraft operational data.

Features:
Arm Cortex CPU based ( STM32F4 ).
3 user Serial COM Ports.
CAN Bus Communication to other devices such as Flare Firing System.
Digital I/O ports for counting number of Flares fired.
USB Port for Flash Drive data storage.
Ublox MAX-8 50 channel WAAS enabled GPS.
8 channel Analog to Digital converter +- 10V inputs
Digital UHF 450 to 470 MHz. Modem with user selectable modulation ( FSK, GMSK and 4FSK )
Maximum 5 watt output power ( programmable ).
Aircraft system power supply from 13VDC to 30VDC @ 2 Amp Circuit Breaker.
Idle Power consumption = 80mA
Power Consumption when Transmitting Message @ 5 Watt = 1.5A for 300 Milliseconds.
Weight = 1.1 Kg
Footprint Dimensions, L=19cM, W=10cM, H = 6cM
100% TITAN compatible.

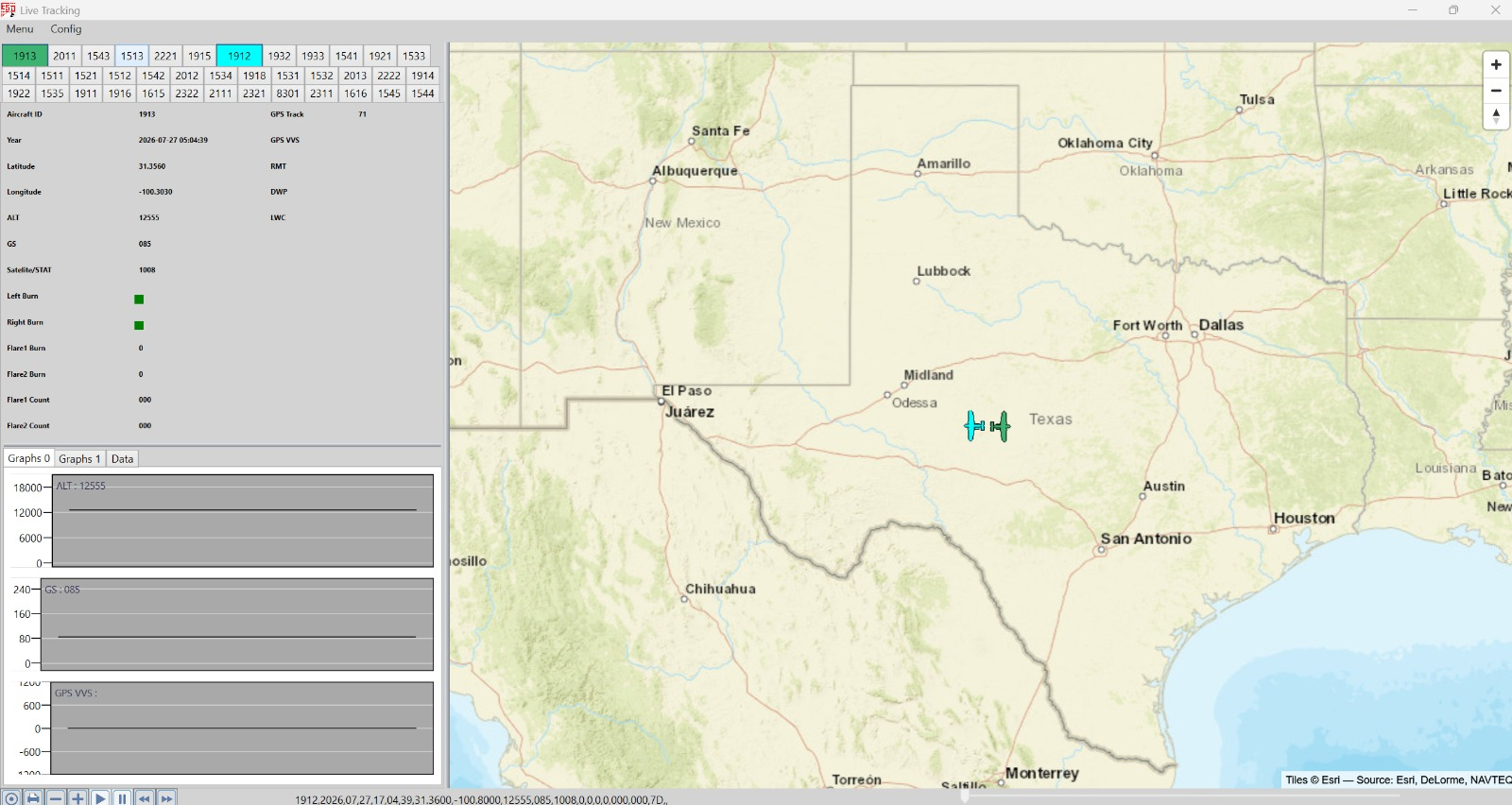

DtsView Windows APP

For more information about this product, please contact ESD International.
